Details
With its newly re-designed frame, the 2021 PD 2 features a low stand-over height for easier climbing in & out of the saddle. Its new lightweight X6 series alloy frame features an internal head tube, internal cable routing, and a revised kickstand position, which keep everything neatly tucked out of the way. It comes standard with a 2x9 drive train, versatile, and capable of handling a wide variety of terrain. It glides along on strong double-wall rims, stainless steel spokes, and Kenda Kwick Seven.5 tires with reflective sidewalls for increased safety. The PD2 model comes complete with a Suntour XCT-30 100mm travel fork featuring a hydraulic lockout, which deactivates the up and down motion associated with suspension, thereby reducing pedaling energy loss in high-speed sprint situations. The PD2 model is your trusted partner for community and outreach patrols.
- New Haro PD2 27.5" X6 frame, updated kickstand position
- Suntour XCT-30 HLO fork, 100mm
- Altus MT210-2 36/22T crankset
- Alivio M4000 2x9 derailleurs
- Pivit Adjustable-rise stem, ext.: 105mm
- Comfort grips w/ integrated Bar-Ends
- WTB Comfort Sport saddle
- MX-21 27.5" Aluminum DW rims w/ Stainless spokes
- Kenda Kwick Seven 2.0" tires w/ reflective stripes
- Promax disc brakes w/ 160mm rotors
- Rear rack, water-bottle cage & kickstand

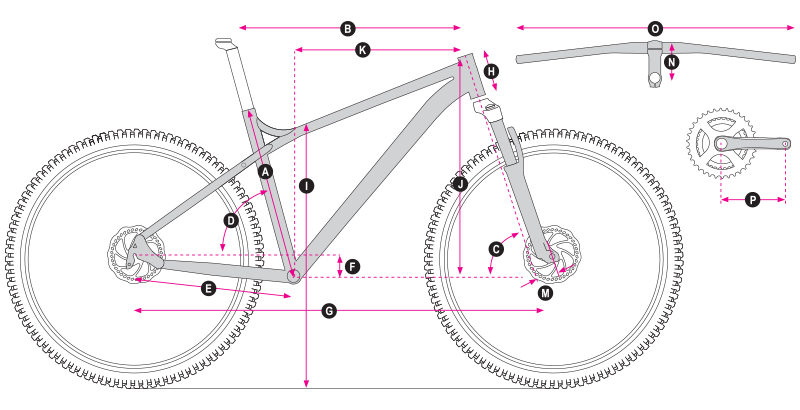

| Small | Medium | Large | X-Large | |
|---|---|---|---|---|
| A. SEAT TUBE (C-T) | 406mm (16") | 457mm (18") | 508mm (20") | 559mm (22") |
| B. TOP TUBE (EFFECTIVE) | 589mm (23.2") | 613mm (24.1") | 624mm (24.6") | 637mm (25.1") |
| C. HEAD TUBE ANGLE | 68° | 68° | 68° | 68° |
| D. SEAT TUBE ANGLE | 73° | 73° | 73° | 73° |
| E. CHAINSTAY LENGTH | 445mm (17.5") | 445mm (17.5") | 445mm (17.5") | 445mm (17.5") |
| F. BB DROP | 45mm (1.8") | 45mm (1.8") | 45mm (1.8") | 45mm (1.8") |
| G. WHEELBASE | 1116mm (43.9") | 1142mm (44.4") | 1153mm (45.4") | 1167mm (45.6") |
| H. HEAD TUBE LENGTH | 100mm (3.9") | 115mm (4.5") | 120mm (4.7") | 130mm (5.1") |
| I. STANDOVER | 692mm (27.2") | 731mm (28.8") | 755mm (29.7") | 787mm (31") |
| J. STACK HEIGHT | 585mm (23") | 599mm (23.7") | 603mm (23.9") | 615mm (24.2") |
| K. REACH | 396mm (15.6") | 421mm (16.6") | 439mm (17.3") | 446mm (17.6") |
| L. FORK HEIGHT | 496mm (19.5") | 496mm (19.5") | 496mm (19.5") | 496mm (19.5") |
| M. FORK OFFSET | 42mm (1.65") | 42mm (1.65") | 42mm (1.65") | 42mm (1.65") |
| N. STEM LENGTH | 105mm | 105mm | 105mm | 105mm |
| O. BAR WIDTH | 700mm | 700mm | 700mm | 700mm |
| P. CRANK LENGTH | 170mm | 170mm | 175mm | 175mm |
Specs
| Frame | New 2021 Haro PD2 27.5" X6 series Aluminum | Tapered Head Tube | Internal housing routing | chainstay disc brake mount | 68mm Threaded BSA |
|---|---|
| Fork | Suntour XCT-30 27.5"x100mm travel | Hydraulic lockout |
| Hubs | Formula DC-20 | DC-22 | cassette 36h QR |
| Tires | Kwick Seven.5 27.5x2.0" | 60TPI | K-Shield | Reflective Stripes |
| Bottom Bracket | Shimano external sealed cartridge 2-pc |
| Crankset | Shimano Altus MT210-2 36/22T | 2-pc BB set |
| Shifters | Shimano Acera SL-M3000 Rapidfire 2x9-spd |
| Front Derailleur | Shimano Alivio M4020-M, 2x9 | Side-Swing | Front pull |
| Rear Derailleur | Shimano Alivio M4000 | 9-spd | Shadow Design |
| Cassette/Freewheel | Shimano CS-HG200-9 | 9-spd | 11-36T |
| Chain | KMC Z9 9-spd |
| Brakes | Promax DSK-300 Mechanical | 160mm Rotors |
| Brake Levers | Tektro ML-520 Alloy | 2-Finger |
| Handlebars | Pivit alloy 25mm riser 31.8mm |
| Tape/Grips | Velo Triple Density | Integrated Bar-Ends |
| Stem | Pivit Adjustable | 31.8x105mm |
| Headset | 1-1/8" Threadless for 50mm OD headtube | w/13mm top cover |
| Seatpost | Pivit aluminum micro adjust 31.6mm |
| Saddle | WTB Comfort Sport |
| Pedals | VP steel cages | Short toe clips |
| Accessories & Extras | Rear rack | Water-Bottle cage | Kickstand |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Matte Black / Small | 691840115810 | 11581 |
| Matte Black / Medium | 691840115827 | 11582 |
| Matte Black / Large | 691840115834 | 11583 |
| Matte Black / X-Large | 691840115841 | 11584 |
