Haro PD4
Details
With its newly re-designed frame, the 2021 PD 4 features a low stand-over height for easier climbing in & out of the saddle. Its new lightweight X6 series aluminum frame features a tapered internal head tube, internal cable routing and a revised kickstand position, which keep everything neatly tucked out of the way. It comes standard with an easy-to-use 1x11 Shimano XT/SLX drive train, versatile and capable of handling a wide variety of terrain. It glides along on strong double-wall rims, stainless steel spokes and Kenda Kwick Seven.5 tires with reflective sidewalls for increased safety. The PD4 model comes complete with a Rockshox Judy Silver Boost / 100mm travel fork featuring a remote hydraulic lockout at the handlebar, which deactivates the up and down motion associated with suspension. For easier maintenance over time, the PD4 features quality Shimano mechanical disc brakes and levers. The PD4 model is your trusted partner for community and outreach patrols.
- New Haro PD4 27.5" X6 frame, updated kickstand position
- Rockshox Judy Silver, 27.5" Boost fork, 100mm, remote Lockout
- FSA Comet Modular 34T crankset
- XT 11-spd Shadow rear derailleur
- SLX M7000 11-spd shifter & 11-46T cassette
- WTB Comfort Sport saddle
- MX-21 27.5" Aluminum DW rims
- Alivio / Altus, Front T/A, 36h hubs
- Shimano Mechanical BR-M375 disc brakes
- Shimano Deore BL-T4000 brake levers

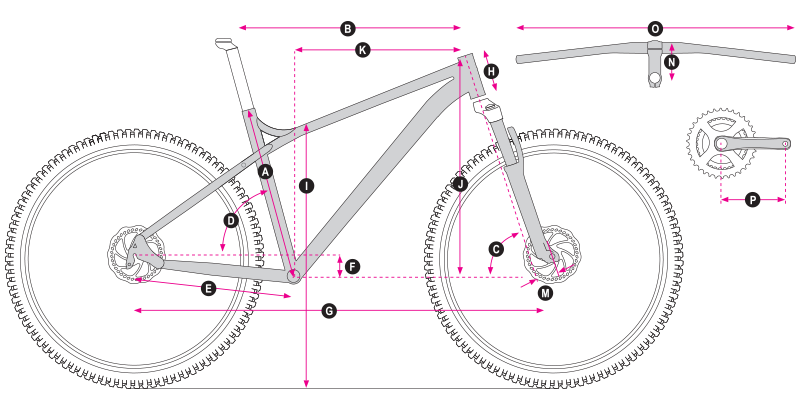

Small | Medium | Large | X-Large | |
---|---|---|---|---|
A. SEAT TUBE (C-T) | 406mm (16") | 457mm (18") | 508mm (20") | 559mm (22") |
B. TOP TUBE (EFFECTIVE) | 593mm (23.3") | 613mm (24.1") | 625mm (24.6") | 635mm (25") |
C. HEAD TUBE ANGLE | 68° | 68° | 68° | 68° |
D. SEAT TUBE ANGLE | 73° | 73° | 73° | 73° |
E. CHAINSTAY LENGTH | 445mm (17.5") | 445mm (17.5") | 445mm (17.5") | 445mm (17.5") |
F. BB DROP | 45mm (1.8") | 45mm (1.8") | 45mm (1.8") | 45mm (1.8") |
G. WHEELBASE | 1109mm (43.7") | 1131mm (44.5") | 1145mm (45.1") | 1155mm (45.5") |
H. HEAD TUBE LENGTH | 115mm (4.5") | 120mm (4.7") | 130mm (5.1") | 130mm (5.1") |
I. STANDOVER | 706mm (27.8") | 721mm (28.4") | 753mm (29.6") | 770mm (30.3") |
J. STACK HEIGHT | 593mm (23.3") | 597mm (23.5") | 606mm (23.9") | 606mm (23.9") |
K. REACH | 410mm (16.1") | 430mm (16.9") | 440mm (17.3") | 450mm (17.7") |
L. FORK HEIGHT | 490mm (19.3") | 490mm (19.3") | 490mm (19.3") | 490mm (19.3") |
M. FORK OFFSET | 42mm (1.65") | 42mm (1.65") | 42mm (1.65") | 42mm (1.65") |
N. STEM LENGTH | 105mm | 105mm | 105mm | 105mm |
O. BAR WIDTH | 700mm | 700mm | 700mm | 700mm |
P. CRANK LENGTH | 170mm | 170mm | 175mm | 175mm |
Specs
Frame | New 2021 Haro PD2-type 27.5" X6 / 6000 series Aluminum | Tapered Head Tube | Internal housing routing | chainstay disc brake mount | 68mm Threaded BSA |
---|---|
Fork | Judy Silver TK | 27.5" Boost | 15x110mm axle | Solo Air | 100mm travel | Poploc Remote Lockout |
Hubs | Shimano Alivio / Altus | thru-Axle front | Center Lock Disc | cassette 36h |
Tires | Kwick Seven.5 27.5x2.0" | 60TPI | Reflective Stripes |
Bottom Bracket | FSA MegaExo 73mm |
Crankset | FSA Comet Modular MegaExo | 34T | Megatooth Chromoly Chainring |
Shifters | Shimano SLX M7000 | 11-spd |
Rear Derailleur | Shimano Deore XT | 11-spd Shadow Plus |
Cassette/Freewheel | Shimano SLX M7000 | 11-spd | 11-46T |
Chain | KMC X11 11-spd |
Brakes | Shimano BR-M375 mechanical | 180/160mm Center Lock Rotors |
Brake Levers | Shimano BL-T4000 | Deore, cable type | 2-finger |
Handlebars | Pivit alloy 25mm riser 31.8mm |
Tape/Grips | Velo Triple Density | Integrated Bar-Ends |
Stem | Pivit Adjustable stem | 31.8x105mm |
Headset | FPD DOZER-1160A-2 | 1.5" ACB bottom | For 44/56mm Head Tube | w/15mm top cap |
Seatpost | Pivit alloy | 2 Bolts | micro adjust 30.9mm |
Saddle | WTB Comfort Sport |
Pedals | VP Steel cage | Short Toe clips |
Accessories & Extras | Rear rack | Water-Bottle cage | Kickstand |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Matte Black / Small | 691840115865 | 11586 |
Matte Black / Medium | 691840115872 | 11587 |
Matte Black / Large | 691840115889 | 11588 |
Matte Black / X-Large | 691840115896 | 11589 |
