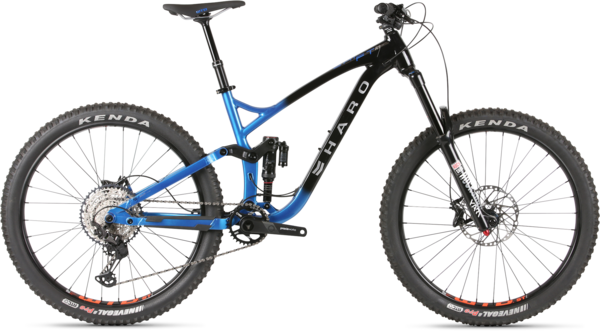

Haro Shift R9
Details
Built around our new Four-bar linkage frame with up-to-date geometry and proprietary X6 aluminum tubing, the Shift R9 is the ultimate ride-anywhere-ride-anything Enduro model. With a steeper seat tube angle for more efficient pedaling plus a slacker head tube angle and longer reach for an improved attack position, the Shift R9 will satisfy a wide range of riders. With 160mm of rear travel and 170mm of front suspension provided by Rockshox, the Shift R9, with its new Shimano XT and SLX 12-speed components, allows for a smooth ride up or down the hills, under the clock or not, with a wide-range gear ratio and precise, crisp shifting.
Features:
- Shift R X6 series 4-Bar Linkage frame, 27.5" Enduro geometry, 160mm travel, Boost thru-axle dropouts
- Rockshox Super Deluxe Select R Trunnion rear shock w/ reservoir
- RockShox Yari RC 27.5" Boost fork, 35mm, 170mm travel
- Praxis Cadet forged crankset, M30 Axle, 32T alloy chainring
- New Shimano XT 12-spd rear derailleur
- New SLX 12-spd shifter & 10-51T cassette
- WTB ST Light i-29 27.5" rims, tubeless ready
- New Kenda Nevegal-2 27.5x2.6" tires, 120 TPI, Aramid Beads
- Shimano MT 520/501 4-piston disc brakes
- X-Fusion Manic 125/150mm internal dropper post & remote

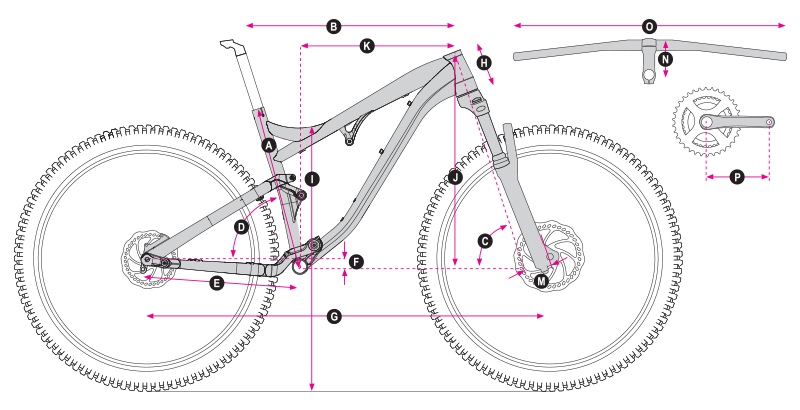

| Medium | Large | X-Large | |
|---|---|---|---|
| A. SEAT TUBE (C-T) | 435mm (17.1") | 472mm (18.6") | 497mm (19.6") |
| B. TOP TUBE (EFFECTIVE) | 593mm (23.3") | 622mm (24.5") | 650mm (25.6") |
| C. HEAD TUBE ANGLE | 65° | 65° | 65° |
| D. SEAT TUBE ANGLE | 76.7° | 76.6° | 76.5° |
| E. CHAINSTAY LENGTH | 433mm (17") | 433mm (17") | 433mm (17") |
| F. BB DROP | 15mm (0.6") | 15mm (0.6") | 15mm (0.6") |
| G. WHEELBASE | 1206mm (47.5") | 1236mm (48.7") | 1265mm (49.8") |
| H. HEAD TUBE LENGTH | 110mm (4.3") | 120mm (4.7") | 130mm (5.1") |
| I. STANDOVER | 755mm (29.7") | 778mm (30.6") | 784mm (30.9") |
| J. STACK HEIGHT | 609mm (24") | 618mm (24.3") | 627mm (24.7") |
| K. REACH | 450mm (17.7") | 475mm (18.7") | 500mm (19.7") |
| L. FORK HEIGHT | 562mm (22.1") | 562mm (22.1") | 562mm (22.1") |
| M. FORK OFFSET | 46mm (1.8") | 46mm (1.8") | 46mm (1.8") |
| N. STEM LENGTH | 35mm | 35mm | 35mm |
| O. BAR WIDTH | 780mm | 780mm | 780mm |
| P. CRANK LENGTH | 170mm | 170mm | 170mm |
Specs
| Frame | Shift R Enduro | X6 Aluminum series | 4-Bar linkage | 27.5"x160mm travel | Tapered 1.5" head tube | 73mm threaded BSA | Enduro bearings | Boost 12mm thru-axle dropouts |
|---|---|
| Fork | RockShox Yari 27.5 B | 1-1/8"-1.5" Tapered Aluminum steer | Debon Air | 170mm travel | 15x110mm Maxle Lite thru-axle included |
| Headset | FSA Orbit 1.5E ZS ACB top | 1.5" bottom for 44/56mm head tube | 8mm Top Cone |
| Rear Shock | RockShox Deluxe Select | Trunnion | DebonAir 205x65mm | Piggyback | Rebound adjuster | MM Tune |
| Rims/Wheels | WTB ST Light i29 27.5" Plus rims | 35mm wide | Aluminum double wall | Sleeved | TCS i29 rim tape |
| Hubs | Front: Pivit SB 15mm thru-axle | Rear: Shimano FH-MT510-B Boost | 12mm thru-axle | 12-spd cassette compatible |
| Tires | Kenda Nevegal 2 Pro | 27.5*2.6 | 120tpi folding | Enduro casing |
| Crankset | Praxis Cadet 32T | 12-spd | 1x Forged Aluminum Chainring | Boost |
| Bottom Bracket | Praxis 30mm 73mm Boost sealed cartridge |
| Chain | KMC X12-1 NP/GY | Missing Link |
| Front Derailleur | Upper chain-guide with ISCG frame mount |
| Rear Derailleur | Shimano XT RD-M8100 SGS 12-spd | Shadow Plus design |
| Cassette/Rear Cogs | Shimano SLX CS-M7100 12-spd | 10-51T |
| Shifters | Shimano SLX | SL-M7100-R | Right 12-Speed | Clamp w/o gear display |
| Handlebars | Pivit Alloy 35mm O.D. | 780mm | 20mm rise |
| Tape/Grips | WTB Ace Dual Clamps |
| Stem | Pivit Aluminum 3D forged Enduro 35mm | 0 Deg. | Ext. 35mm |
| Brake Levers | Shimano BL-MT501 Hydraulic |
| Brakes | Shimano BR-MT520 Hydraulic Disc | 4-Piston | 203 / 180mm Rotors |
| Pedals | Sold separately |
| Saddle | WTB Volt Medium SL | Flex Tuned shell | DNAx padding | color accents |
| Seat Post | X-Fusion Manic 125/150mm Dropper post | Shifter-type remote | 31.6x150/125mmx400 |
| Accessories & Extras | Frame bearings by Enduro USA |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Black/Metallic Blue / Small | 691840114714 | 11471 |
| Black/Metallic Blue / Medium | 691840114721 | 11472 |
| Black/Metallic Blue / Large | 691840114738 | 11473 |
| Black/Metallic Blue / X-Large | 691840114745 | 11474 |
